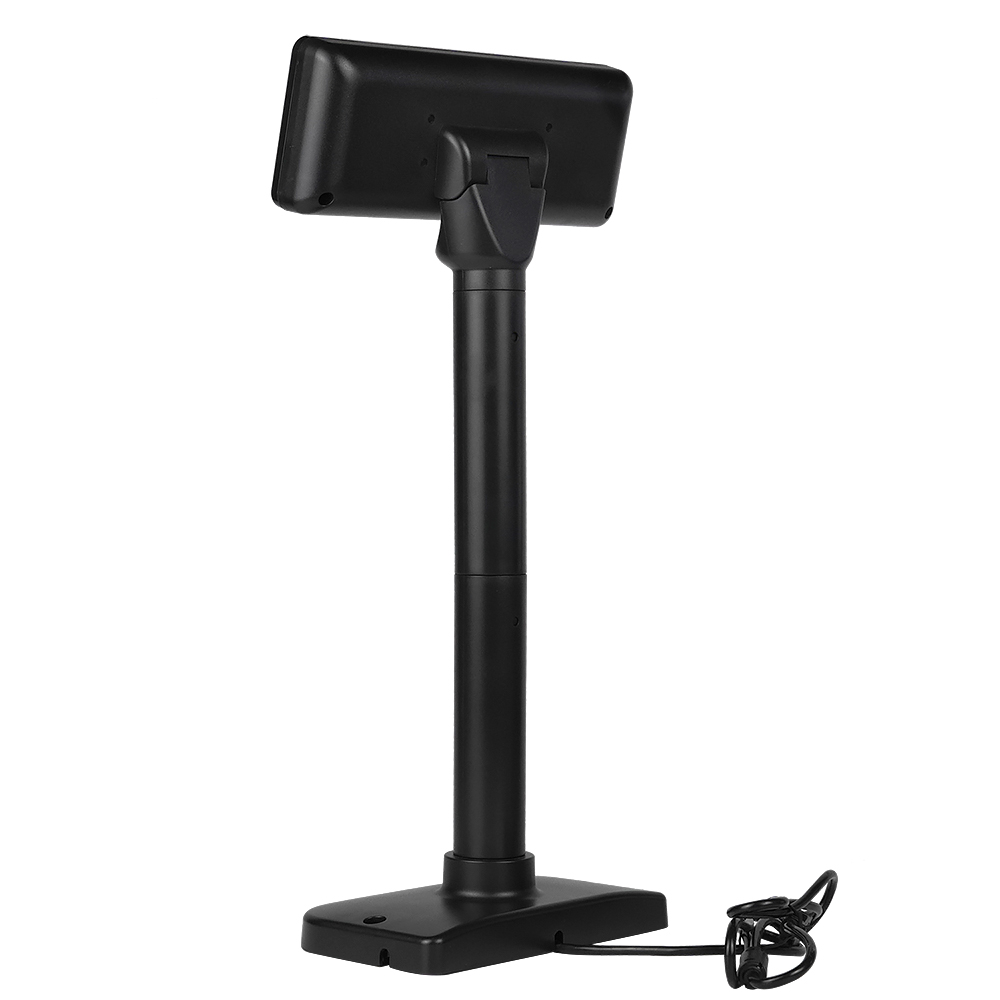

PD220V
Vacuum Fluorescent Display Customer Pole Display
Blue-green Vacuum Fluorescent Display (40 characters), multiple command mode support and RS-232/USB interface.
Highlighted Specs
- Vacuum Fluorescent Display (Blue-green)
- 40 characters (20 columns x 2 lines)
- Brightness: 500~1000 cd/m²
- Character font: 5 x 7 dot matrix
- 95 Alphanumeric + 32 International Characters
- Viewing angle max 90°, horizontal rotation max 355°
- Interface: RS-232 (serial) / USB
- Power Consumption: 5~24 VDC
- Weight: Approx. 980 grams
- Reliable MTBF of 30,000 hours
Full Specifications
Display Method: Vacuum Fluorescent Display (Blue-green)
Number of Characters: 40 (20 columns x 2 lines)
Brightness: 500~1000 cd/m²
Character Font: 5 x 7 dot matrix
Character Type: 95 Alphanumeric, 32 International Characters
Character Size: 9.03(H) x 5.25(W) mm
Dot Size (X x Y): 0.85 x 1.05 mm
Downloadable Characters: 9 characters
Panel Dimension: 200(W) x 77.5(D) x 31(H) mm
Pole Dimension: Per support length: 140(L) x 34.5(Dia) mm
Base Dimension: 169.5(W) x 98.5(D) x 39(H) mm
Viewing Angle: Max. 90°
Horizontal Rotation: Max. 355°
Weight: Approx. 980 grams
Commands Mode: LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL, ICD2002, EZ-202, PL-200, PD3000
Language Support: FRANCE, GERMANY, U.K, DENMARKI, SWEDEN, ITALY, SPAIN, JAPAN, NORWAY, DENMARKII, SLAVONIC, RUSSIA, Portuguese, Canadian French, Nordic, Turkish, Greek, West European Latin, CP858, CP860, WPC1252, CP857(TURKISH), Polish, WPC1250, WPC1253 (GREEK), WPC1255 (Hebrew), WPC1251, CP866, CP852, CP737 (DOSgreek), CP858, CP864 (Arabic), Farsi (Iran)
Interface: RS-232 (serial) / USB
Connection Baud Rate: Direct connection 9600 or 19,200 bps
Reliability (MTBF): 30,000 hours
Power Consumption: 5~24 VDC
Safety Standards: FCC, CE, ROHS
