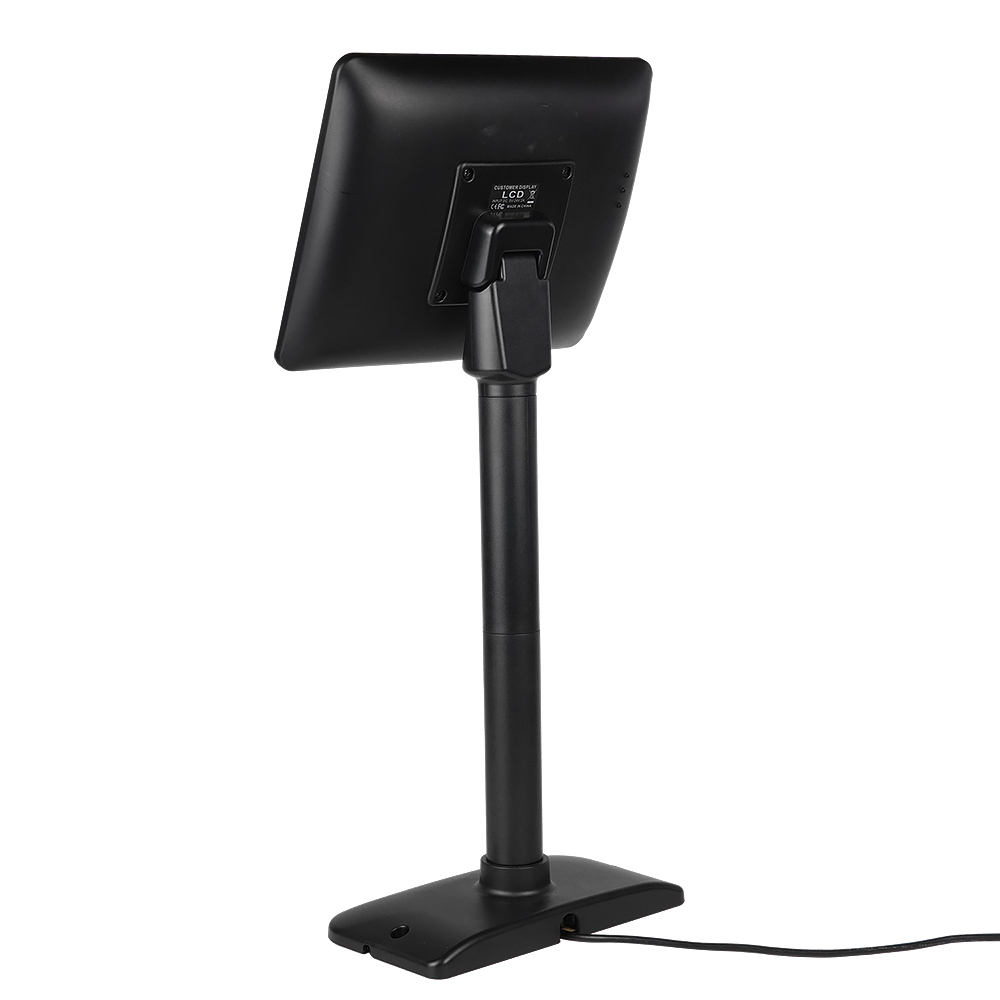

NEXT970
9.7" USB TFT-LCD Customer Display
High-brightness 9.7" TFT-LCD display with USB-only power, excellent resolution, and wide viewing angles for customer-facing applications.
Highlighted Specs
- 9.7" Wide TFT-LCD Display
- USB 2.0 Interface & Power
- Resolution: 800×600 / 1024×768
- High Brightness: 450 Nits
- LED Backlight
- Wide Viewing Angle
Full Specifications
Display Size: 9.7 Inch Wide
Technical Solution: DisplayLink
Interface: USB 2.0
Resolution: 800×600 / 1024×768
Power Supply: USB Only, 5V
Display Area: 162 mm (H) × 121 mm (V) — 4:3 Aspect Ratio
Display Type: High Brightness TFT-LCD (Digital Panel)
Back Light: LED
White Luminance: 450 Nits
Response Time: 25 ms
Viewing Angle: 350° (Horizontal), 60° (Vertical)
Operating Temperature: -20℃ to 45℃
