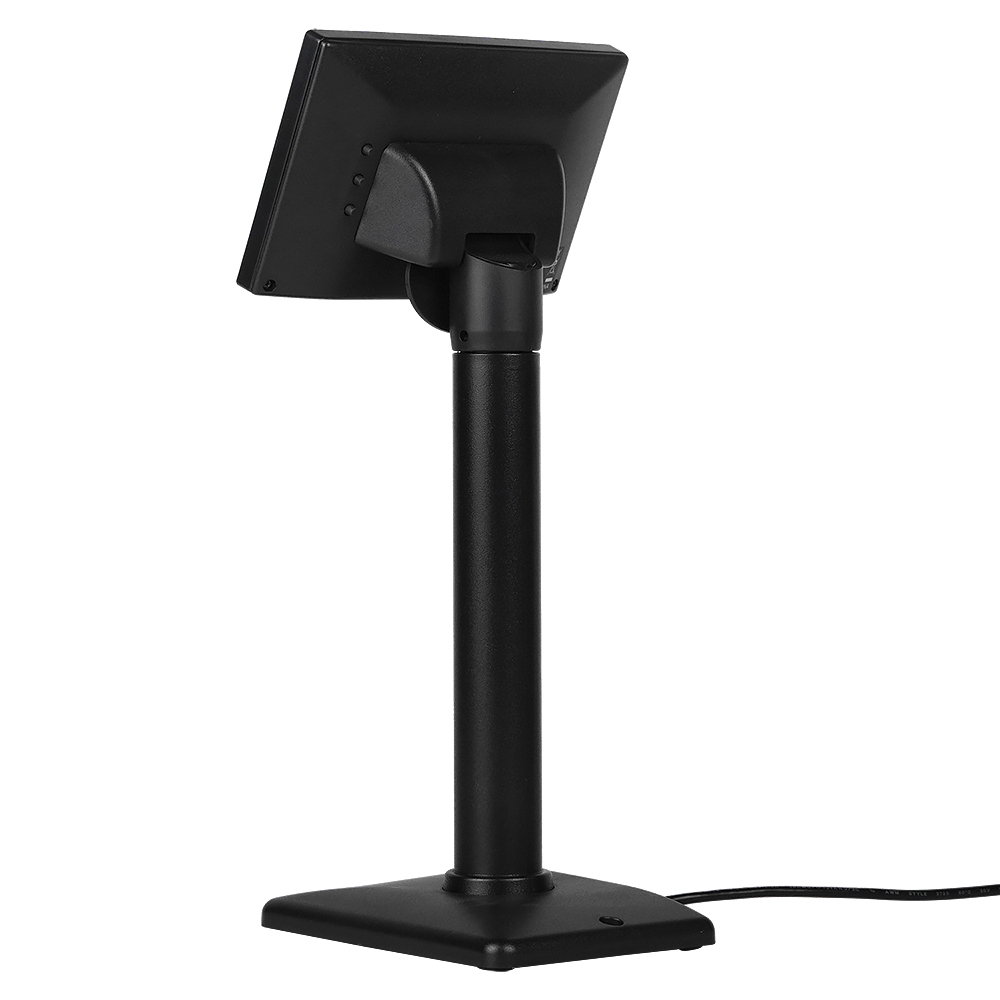

NEXT500
15" TFT-LCD Customer Display
15" color TFT-LCD customer display with flexible command modes, wide language support, and adjustable viewing angles.
Highlighted Specs
- 15" TFT-LCD color panel
- Display modes: 20 × 2 or 20 × 4 characters
- Brightness: >350 cd/m²
- Resolution: 800 × 480
- Wide language and command mode support
- RS‑232 or USB interface
- Adjustable pole height and rotation
Full Specifications
Model No.: NEXT500
Display Method: TFT-LCD display, 15" color panel
Pattern: 20 columns × 2 lines or 20 columns × 4 lines
Standby Mode: Shows images full screen
Brightness: >350 cd/m²
Resolution: 800 × 480
Character Font: 40 × 80 dot matrix
Character Type: 95 alphanumeric, 32 international characters
Character Size: 10.8 mm (H) × 5.4 mm (W)
Dot Size (X × Y): 0.135 × 0.135 mm
Active Area: 108 mm (L) × 24.8 mm (W)
Pole Dimension: Per support length: 163 mm (L) × 27.65 mm (Dia) / 80 mm (L) × 27.65 mm (Dia)
Base Dimension: 126 mm (L) × 89 mm (W) × 13.5 mm (H)
Viewing Angle: Max. 135°
Horizontal Rotation: Max. 355°
Weight: 490 g / 506 g
Commands Mode: 15 kinds (LD22D, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP80D, CD5220, EMAX, Logic Control, etc.)
Language Support: CP437, Katakana, CP850, CP860, CP863, CP865, WCP1252, CP857, WCP1250, WCP1253, WCP1255, WCP1251, CP886, CP852, CP737, CP858, CP864, WCP1257, WCP1258, Thai CP874, CP936
Interface: RS‑232 (serial) / USB
Connection Baud Rate: 9600 / 19200 / 38400 / 57600 / 115200 bps
Reliability (MTBF): 30,000 hours
Power Supply: 5–24 VDC
Safety & Certifications: FCC, CE, RoHS
