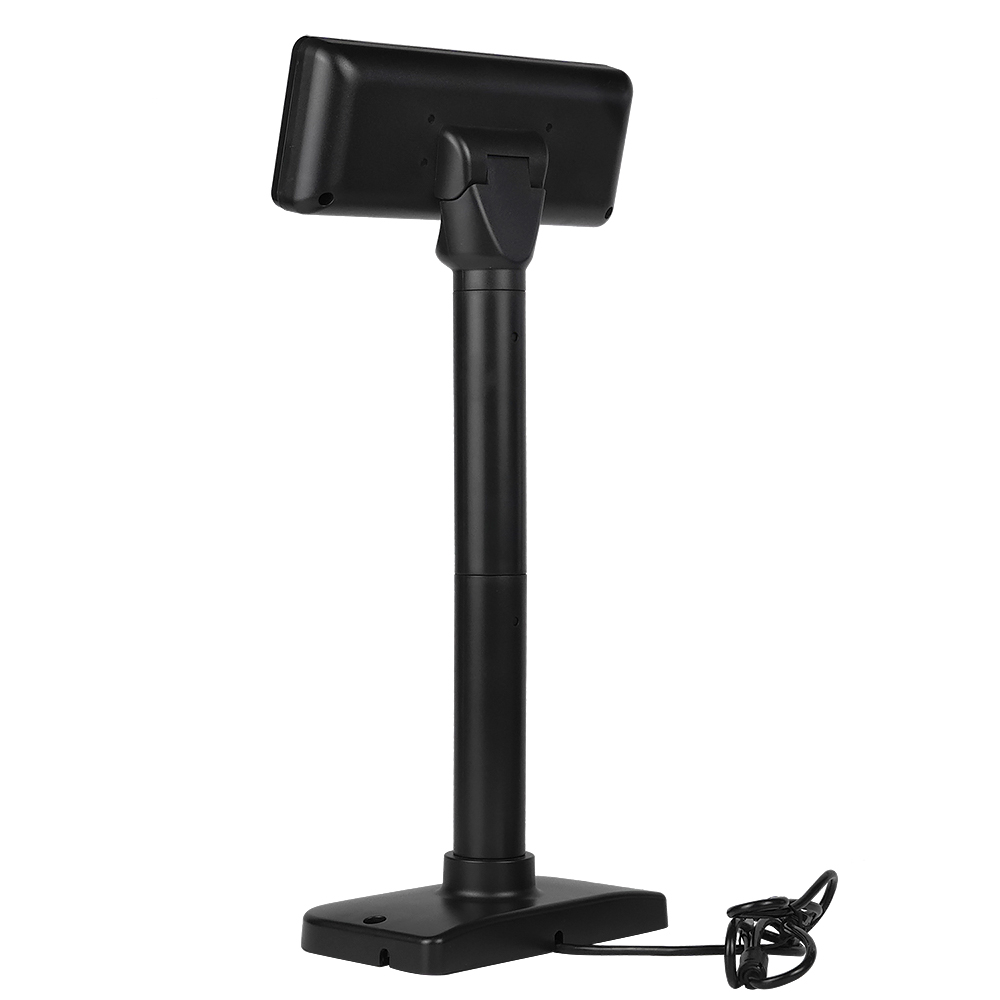

NEXT220V
Vacuum Fluorescent Customer Pole Display
2-line, 20-character VFD customer display with RS‑232/USB interface and multi‑command mode support.
Highlighted Specs
- Vacuum fluorescent display (blue‑green)
- 40 characters total (20 columns × 2 lines)
- Brightness: 500–1000 cd/m²
- Character font: 5 × 7 dot matrix
- 95 alphanumeric + 32 international characters
- Viewing angle up to 90°, horizontal rotation up to 355°
- Interface: RS‑232 (serial) / USB
- Power: 5–24 VDC
- Weight: approx. 980 g
- MTBF: 30,000 hours
Full Specifications
Model No.: NEXT220V
Display Method: Vacuum Fluorescent Display (blue‑green)
Number of Characters: 40 (20 columns × 2 lines)
Brightness: 500–1000 cd/m²
Character Font: 5 × 7 dot matrix
Character Type: 95 alphanumeric, 32 international characters
Character Size: 9.03(H) × 5.25(W) mm
Dot Size (X × Y): 0.85 × 1.05 mm
Downloadable Characters: 9 characters
Panel Dimension: 200(W) × 77.5(D) × 31(H) mm
Pole Dimension: 140(L) × 34.5(Dia) mm (per support length)
Base Dimension: 169.5(W) × 98.5(D) × 39(H) mm
Viewing Angle: Max. 90°
Horizontal Rotation: Max. 355°
Weight: Approx. 980 grams
Commands Mode: LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL, ICD2002, EZ‑202, PL‑200, NEXT3000
Language Support: French, German, U.K, Denmark I, Sweden, Italy, Spain, Japan, Norway, Denmark II, Slavonic, Russia, Portuguese, Canadian French, Nordic, Turkish, Greek, West European Latin, CP858, CP860, WPC1252, CP857 (Turkish), Polish, WPC1250, WPC1253 (Greek), WPC1255 (Hebrew), WPC1251, CP866, CP852, CP737 (DOS Greek), CP858, CP864 (Arabic), Farsi (Iran)
Interface: RS‑232 (serial) / USB
Connection Baud Rate: Direct connection 9600 or 19,200 bps
Reliability (MTBF): 30,000 hours
Power Consumption: 5–24 VDC
Safety Standards: FCC, CE, RoHS
