NEXT-T150
Smart design, Aluminum Alloy Housing, and more
Smart design with Aluminum Alloy Housing, fanless cooling, ultra-narrow bezel 10-point PCAP touch, and adjustable metal base.
Highlighted Specs
- Intel® Core™ i5-5287U / i5-8257U Processor
- 15" Industrial Grade A LED Display (1024x768, 400 nits)
- Ultra-narrow Bezel & 10-Point Capacitive Touchscreen
- Fanless design with Aluminum Alloy housing
- Foldable and height-adjustable metal base
- Multiple I/O ports including USB x6, RJ45, COM, VGA
- Supports Windows 7/10/11 and Linux Ubuntu
Full Specifications
Model No.: NEXT-T150 — Smart design with aluminum alloy housing and fanless heat dissipation.
Processor: Intel® Core™ i5-5287U 3M Cache, up to 3.30 GHz or Intel® Core™ i5-8257U 6M Cache, up to 3.90 GHz
Display: 15" Industrial Grade A LED (4:3), 1024 x 768 pixels, 400 CD/㎡ brightness
Memory: DDR3 NB 4G/8G 1600L or DDR4 4G/8G-2400
Storage: M-SATA 128G/256G/512G Optional
Touchscreen: Ultra-narrow bezel, 10-point capacitive
OS Support: Windows 7/10/11, Linux Ubuntu

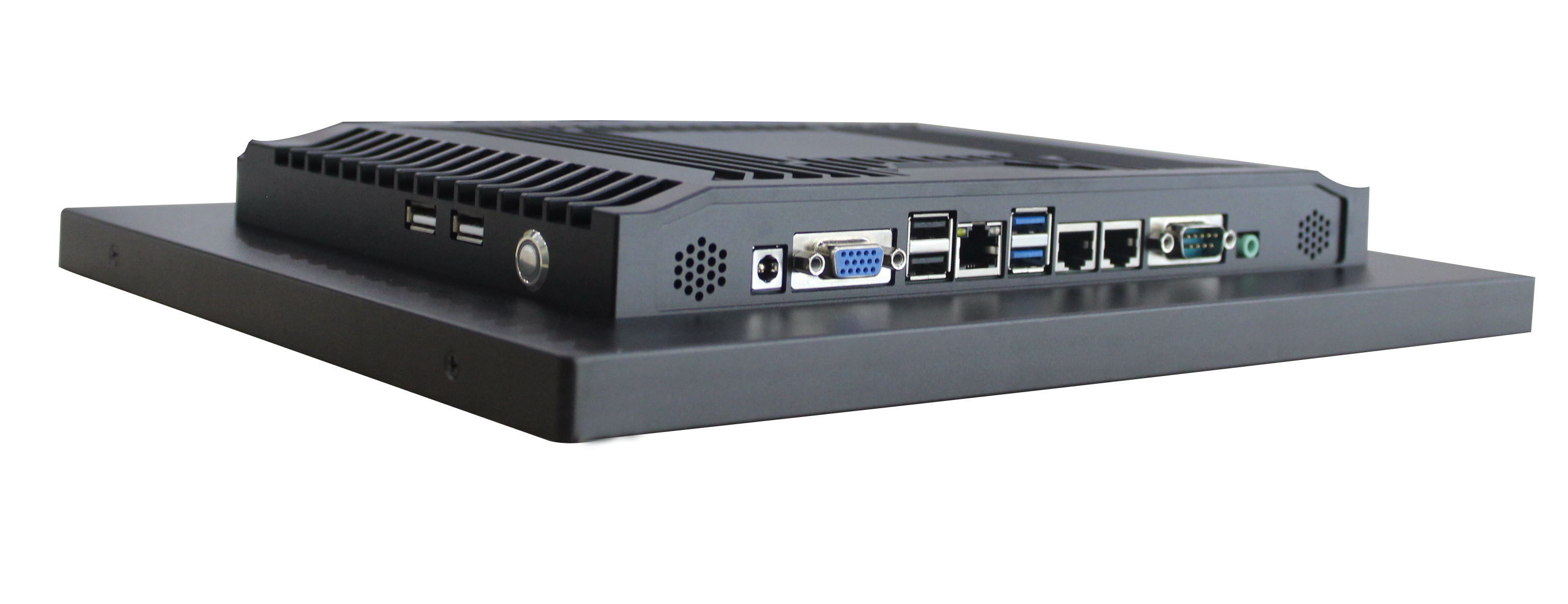

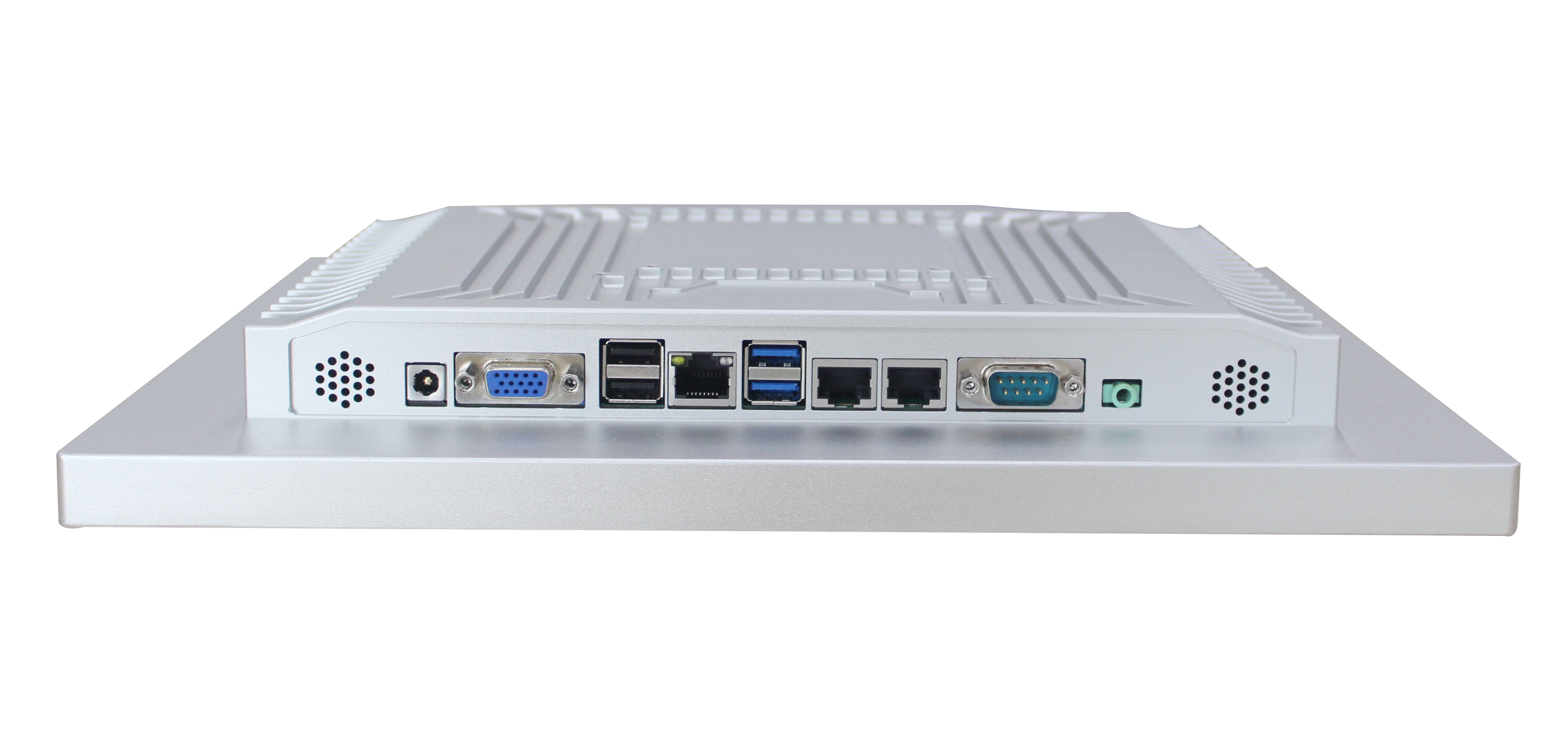

I/O Ports: USB x 6, RJ45 x 1, COM x 1, COM(RJ45) x 2, VGA x 1, Audio x 1, DC x 1, On-off switch x 1
Wireless Module: Wi-Fi/Bluetooth external antenna (optional)
Material: CNC Aluminum Alloy Housing
Power Supply: 100-260V AC (50-60Hz), 12V 5A
Packing: Single box with inner foam, 2 boxes per carton
Certification: CE/FCC/ROHS/CCC/UL
Application: Industrial device, kitchen systems, supermarket, retail store, hospital, café, warehouse, etc.
