NEXT-A8

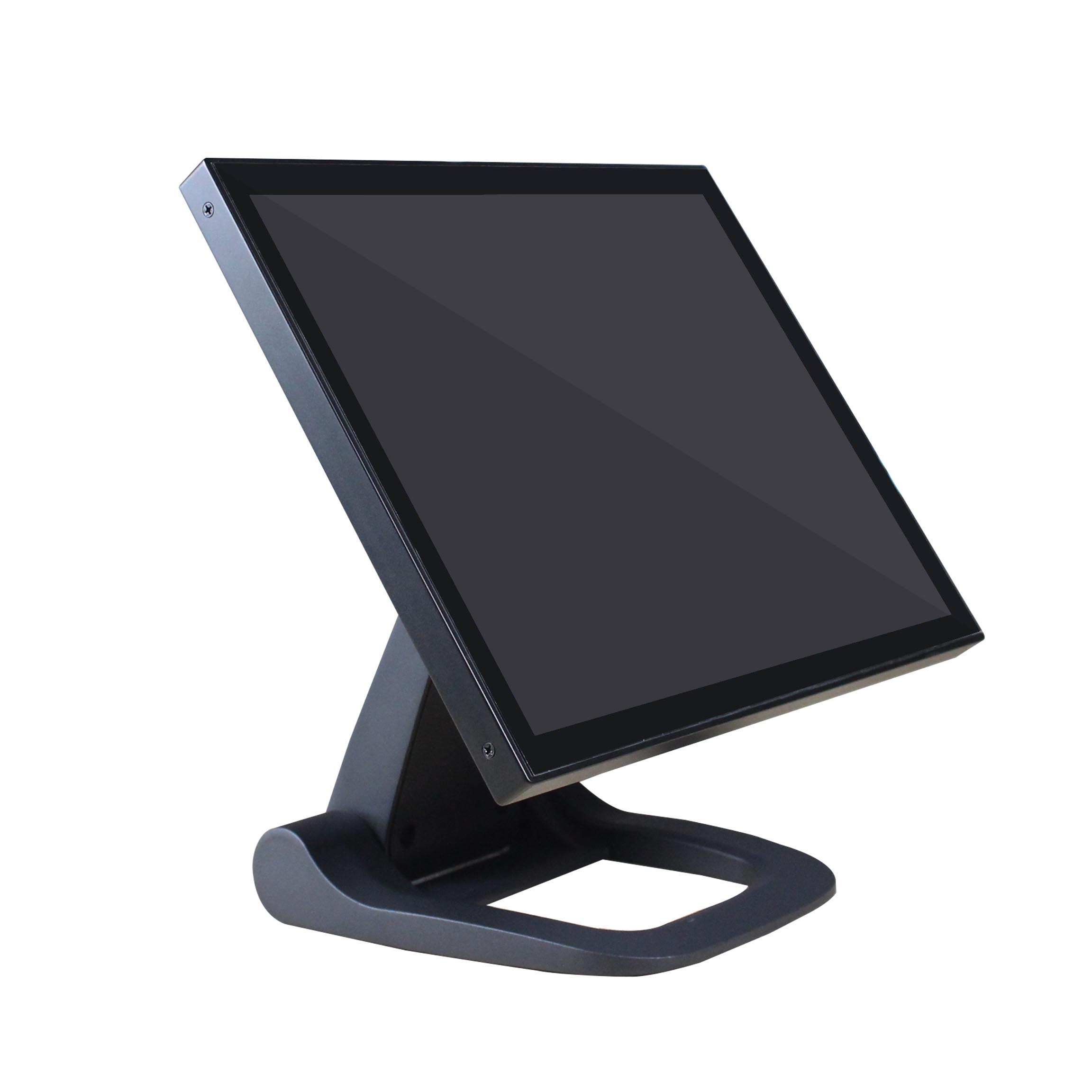

15" Industrial Fanless Touch POS Terminal with Aluminum Alloy Housing
Fanless 15" industrial POS with ultra-narrow bezel capacitive touch and aluminum housing.
Highlighted Specs
- 15" Industrial Grade A LED (4:3), 1024×768, 400 nits
- Fanless design with direct heat dissipation through aluminum shell
- Ultra-narrow bezel, true flat 10-point capacitive touchscreen
- Intel Core i5-5287U or i5-8257U processor options
- DDR3/DDR4 4 GB/8 GB memory options
- M-SATA SSD 128 GB/256 GB/512 GB optional

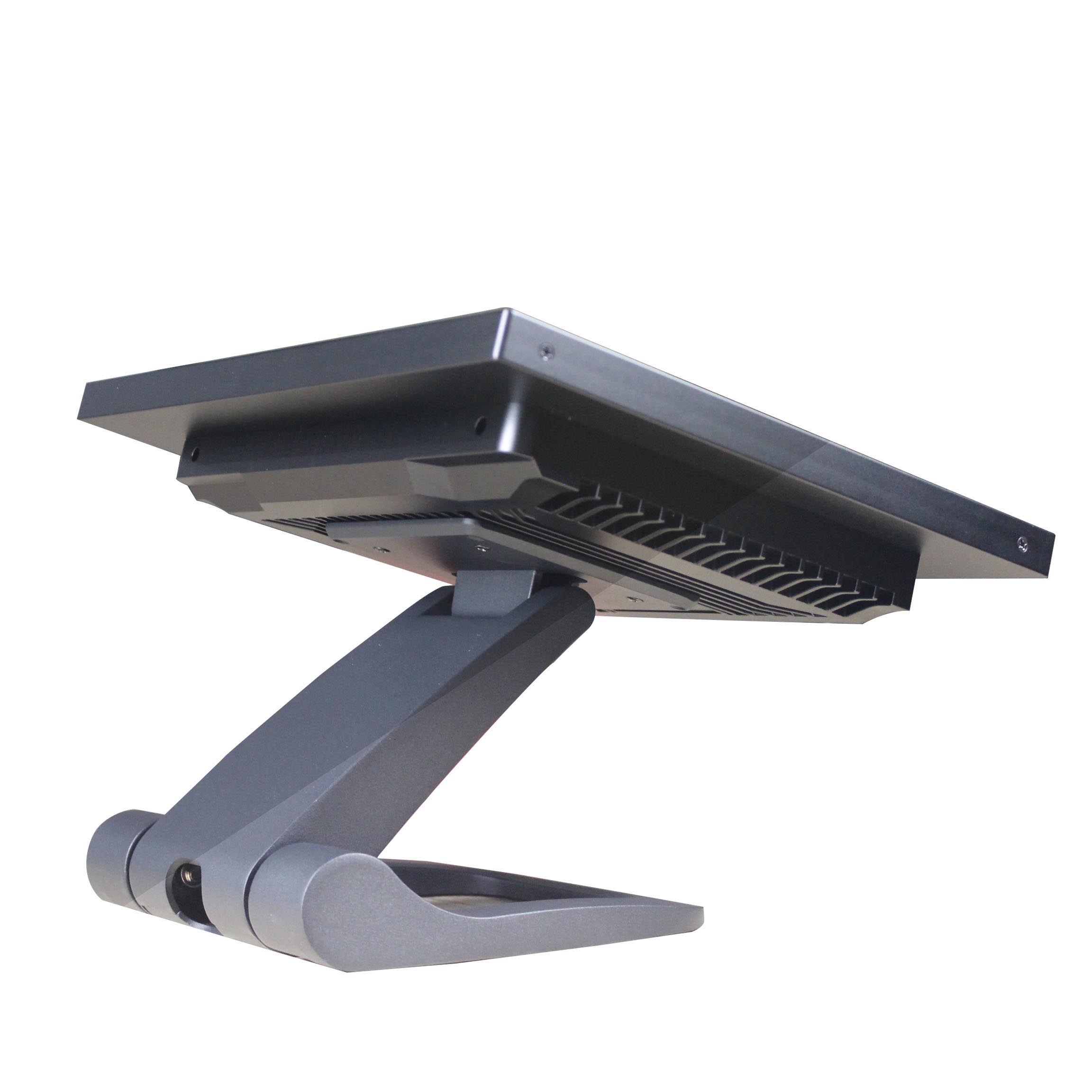

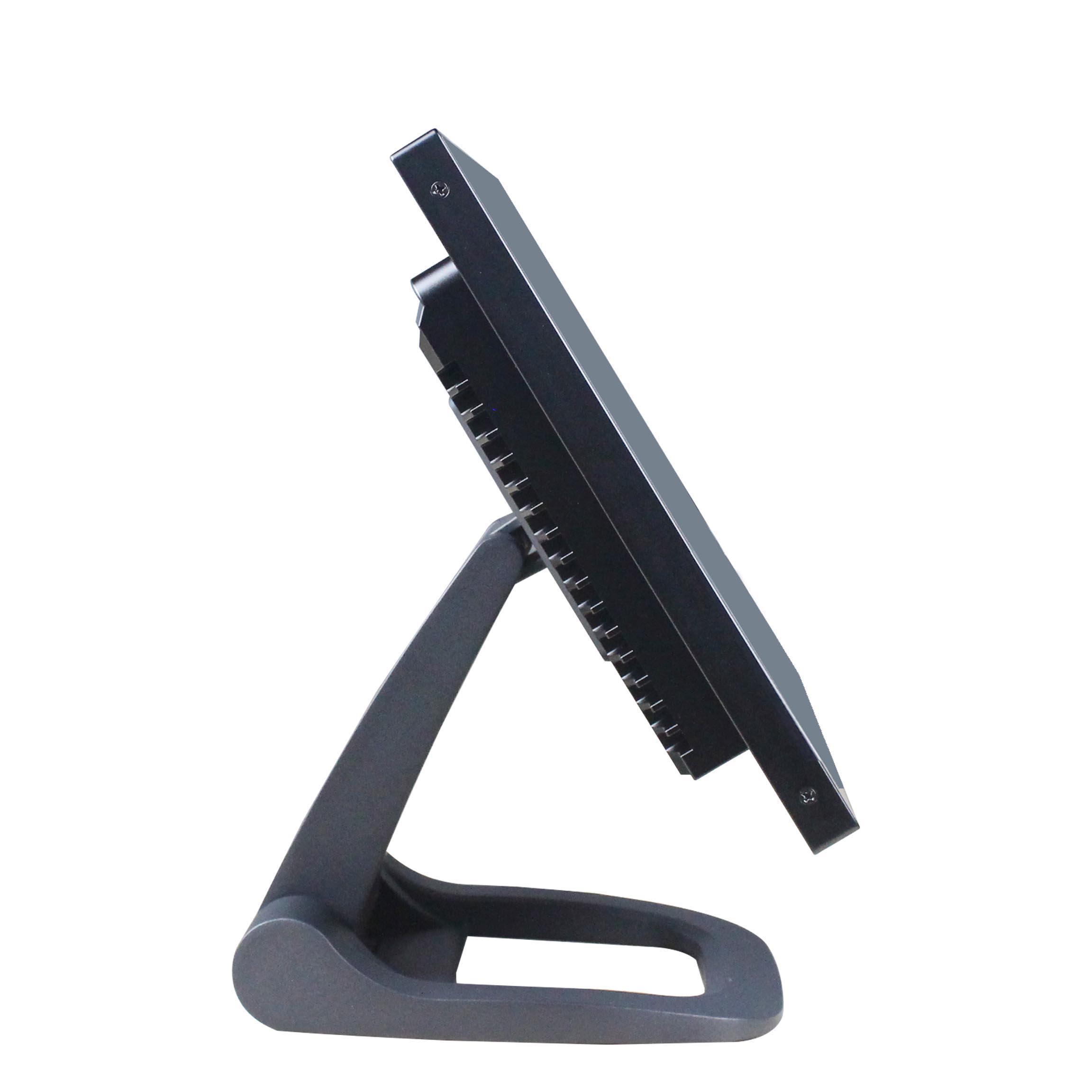

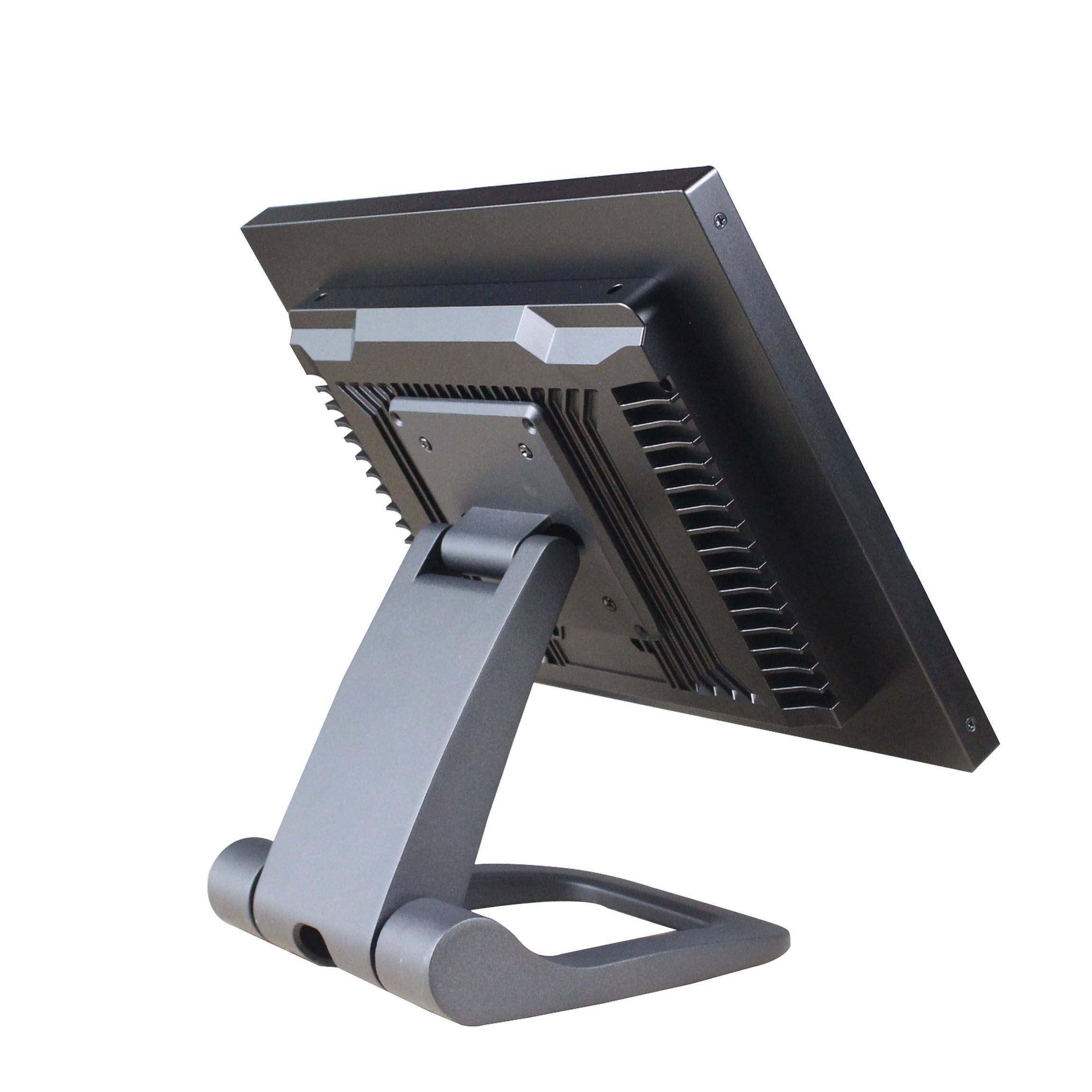

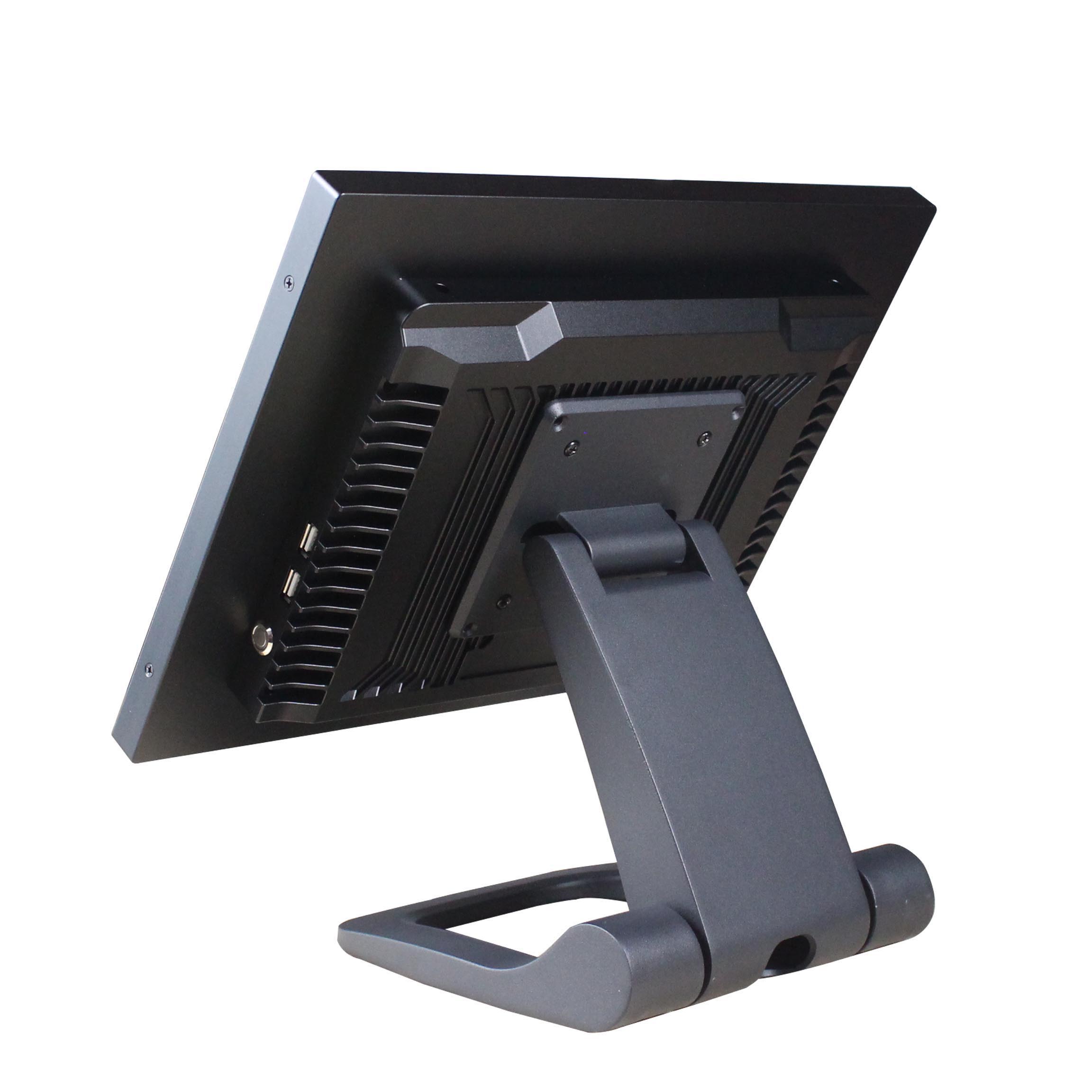

- Foldable and height-adjustable metal base
- CNC aluminum alloy housing with multiple I/O ports
Full Specifications
Model: NEXT-A8
Size and Material: Smart design, CNC Aluminum Alloy Housing, excellent heat dissipation
Fanless Design: Direct heat dissipation through Aluminum Shell
Processor: Intel® Core™ i5-5287U (3M Cache, up to 3.30 GHz) or i5-8257U (6M Cache, up to 3.90 GHz)
Display: 15" Industrial Grade A LED (4:3)
Resolution: 1024 × 768 pixels
Brightness: 400 CD/㎡
Memory: DDR3 NB 4G/8G 1600L or DDR4 4G/8G-2400
Storage: M-SATA SSD 128G/256G/512G optional
Touchscreen: Ultra-narrow, bezel-free, 10-point capacitive touchscreen
OS Support: Windows 7 / 10 / 11, Linux Ubuntu
Customer Display: None
Card Reader: None
Wireless Module: Wi‑Fi / Bluetooth external antenna optional
I/O Ports: USB ×6; RJ45 ×1; COM ×1; COM (RJ45) ×2; VGA ×1; Audio ×1; DC ×1; On/Off switch ×1
Installation: Desktop Base / Desktop Foldable Base / Wall-Mount / VESA 75 × 75 mm
Power Supply: 100–260 VAC (50–60 Hz), 12 V 5 A
Packing: Single Box with Inner Foam; 2 boxes per carton
Certification: CE / FCC / ROHS / CCC / UL
Application: Industrial devices, kitchen systems, supermarkets, shopping malls, retail stores, schools, hospitals, restaurants, cafe bars, warehouses, etc.
