NEXT-6500A
Visible Laser Diode Barcode Scanner

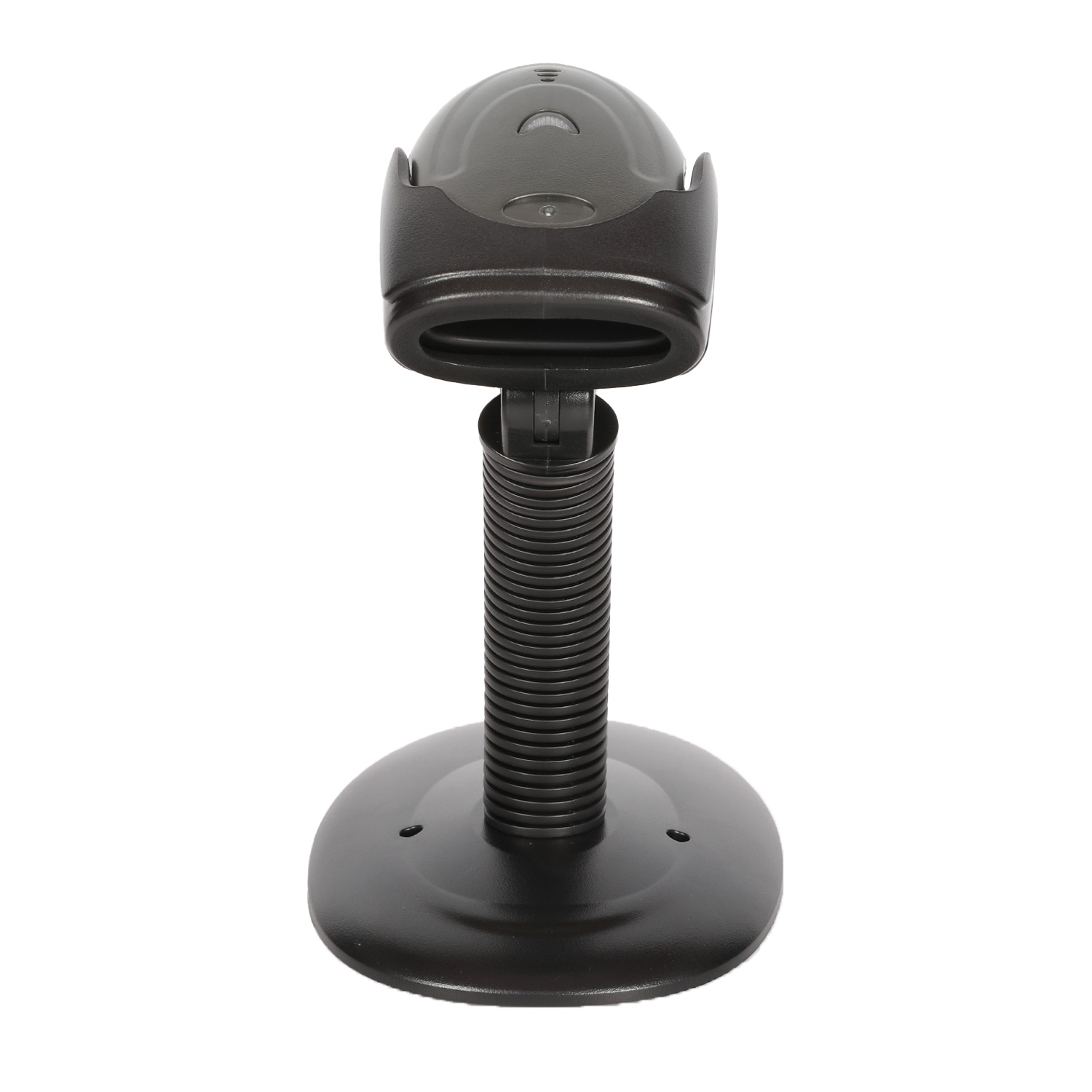

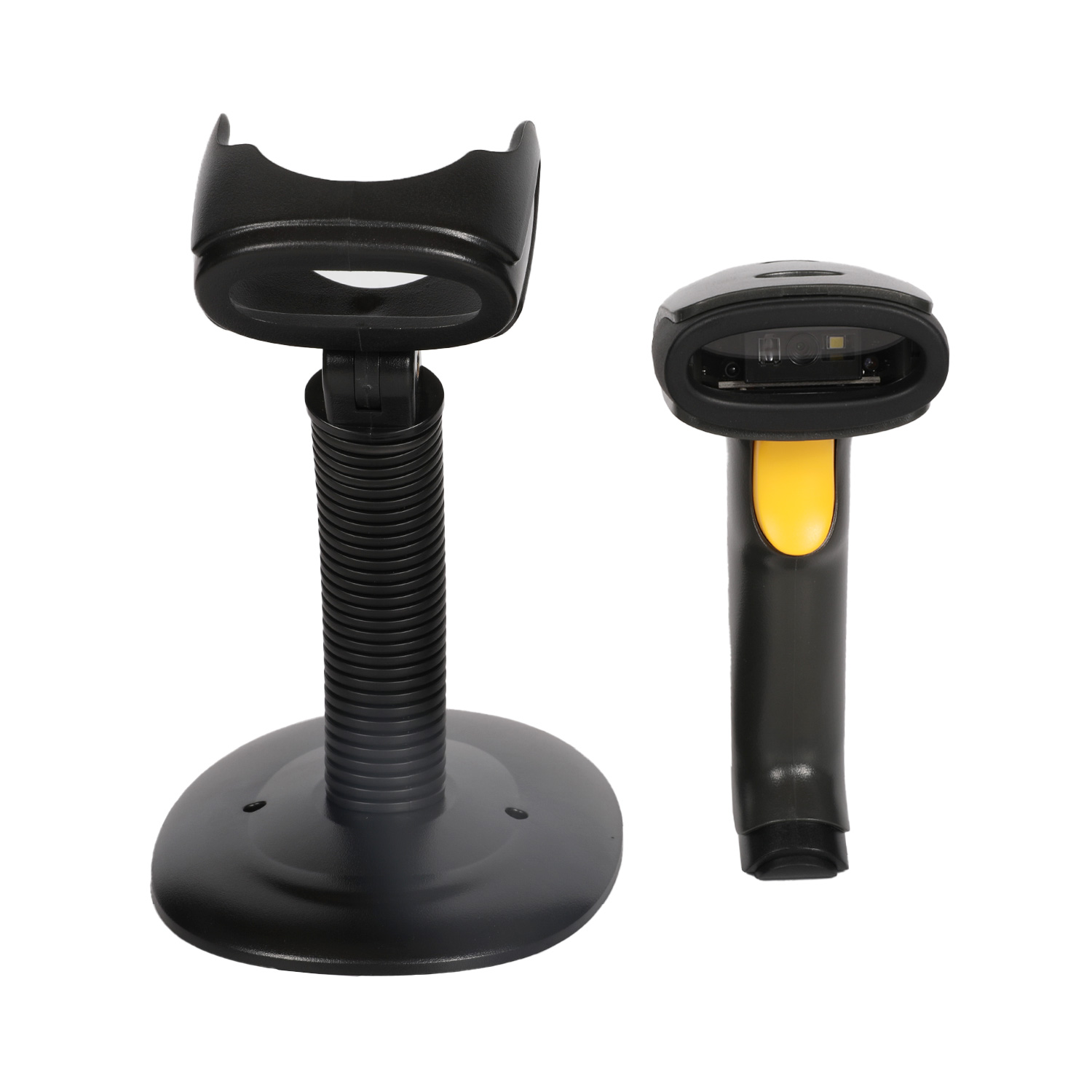

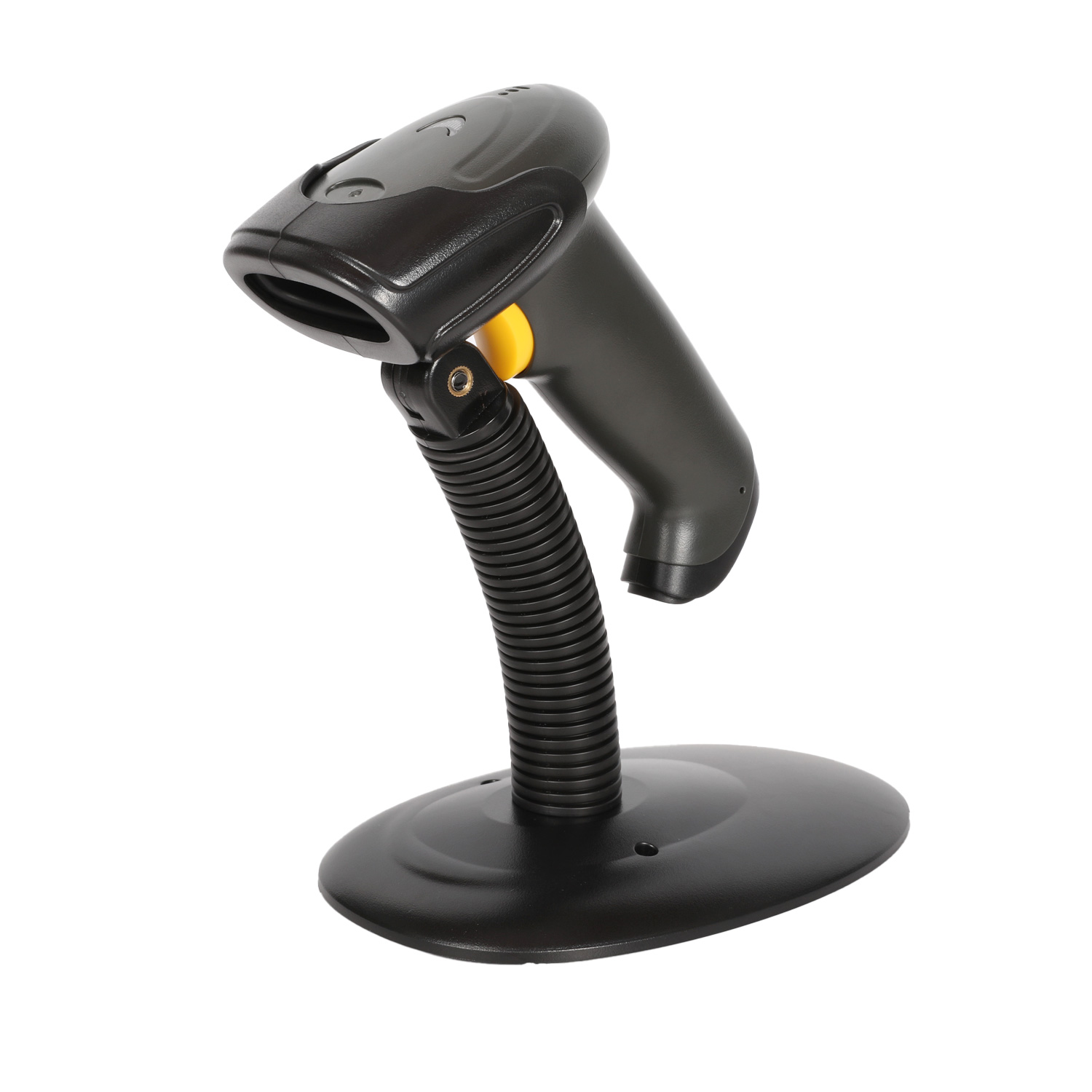

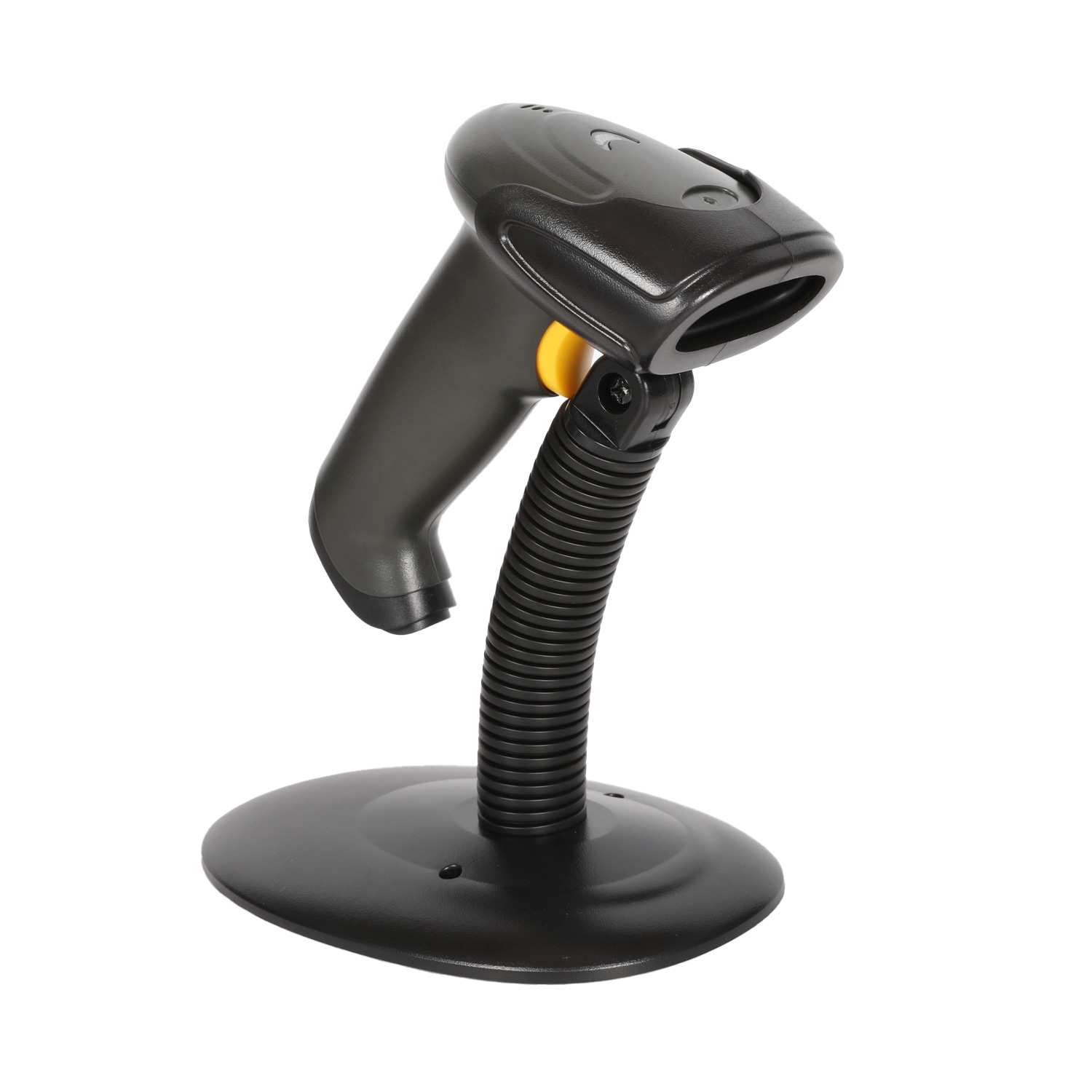

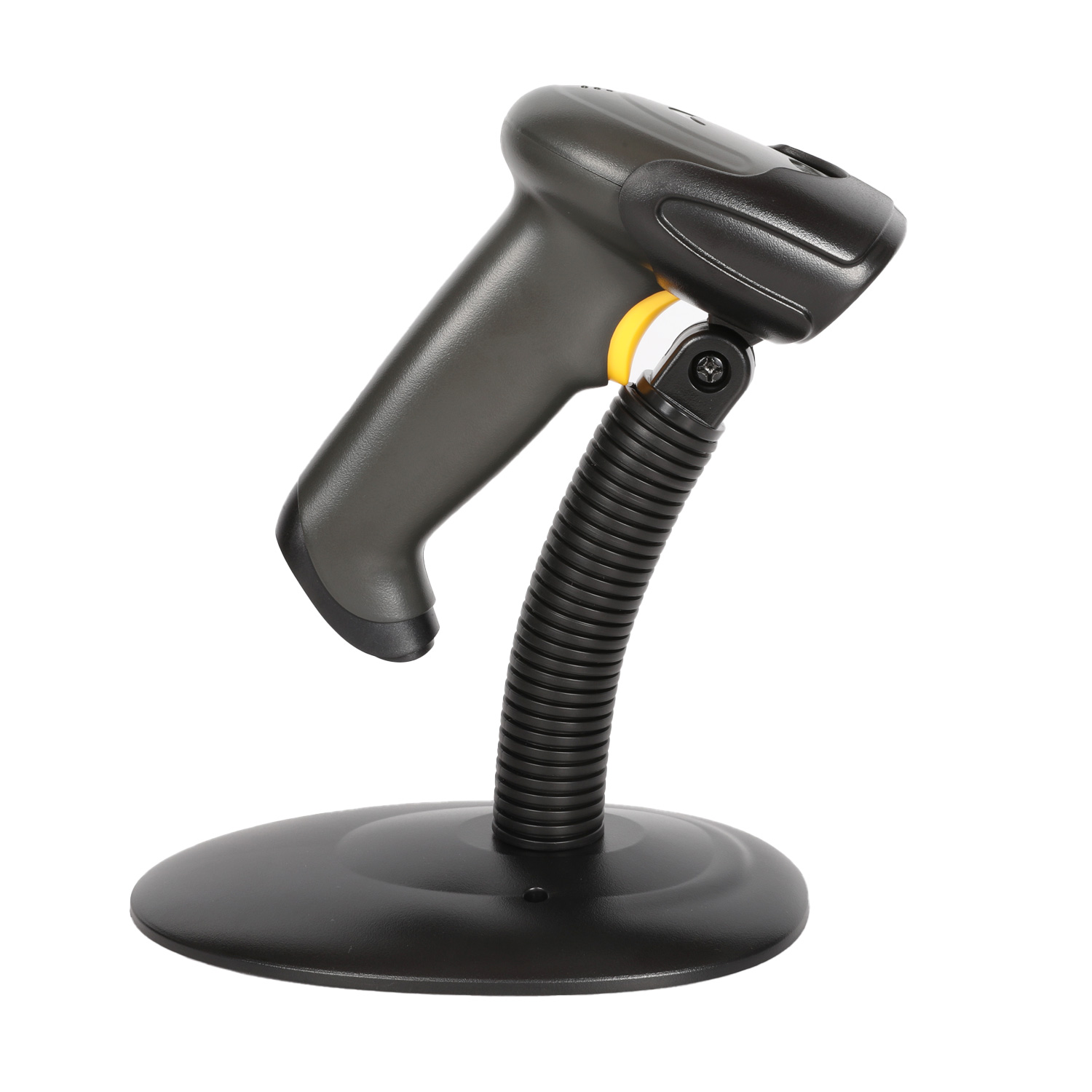

Rugged laser scanner with auto-scan, bracket, and IP54 protection for reliable performance.
Highlighted Specs
- Visible laser diode 650 nm, 300 scans/sec decode rate
- Scan precision: 3 mil; scan depth: 0–330 mm
- Interfaces: PS/2, RS-232, USB-HID, USB-Virtual COM
- Auto, manual, and continuous scan modes
- IP54 waterproof and dustproof protection
- Shock resistant: survives 1.5 m drops
- Lightweight: 246 g; ABS+PC housing
- Supports EAN, UPC, Code 39/93/128, Codabar, 2/5, MSI
Full Specifications
Model Number: XL-6500A
Size (L × W × H): 175 mm × 73 mm × 102 mm
Light Source: Visible Laser Diode 650 nm
Weight: 246 g
Scan Pattern: Single Scan
Material: ABS + PC
Decode Rate: 300 times/second
Voltage: 5 VDC
Scan Precision: 3 mil
Operating Current: 85 mA
Scan Width: 30 mm @ scan window, 220 mm @ 200 mm
Static Current: 30 mA
Scan Depth of Field: 0–330 mm (0.33 mm pcs 0.9)
Laser Class: Meets Grade I National Criteria for Laser Safety
Elevation Angle: 65°
EMC: CE & FCC DOC compliance
Deflection Angle: 55°
Operating Temperature: 0°C to 50°C
Support Interface: PS/2 (KB), RS-232, USB-HID, USB-Virtual COM
Storage Temperature: -40°C to 70°C
Print Contrast: 10% UPC/EAN, 100%
Humidity: 5% to 85% relative humidity, non-condensing
Mention Pattern: Buzzer, Indicator
Light Levels: Daylight, 3000–8000 Lux
Scan Mode: Automatic, Manual, Continuous
Shock: Designed to withstand 1.5 m drops
Decoding Capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI.
