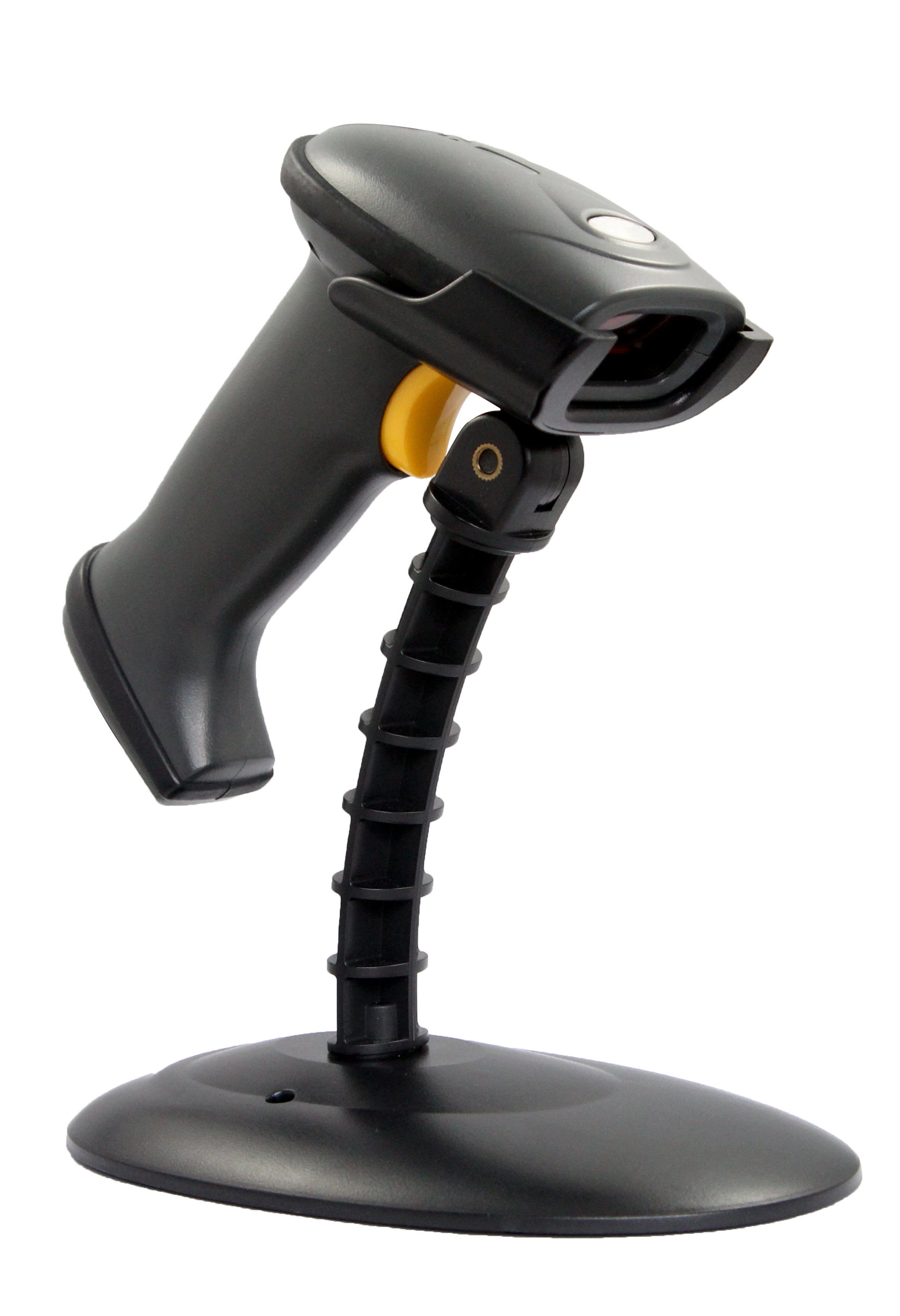

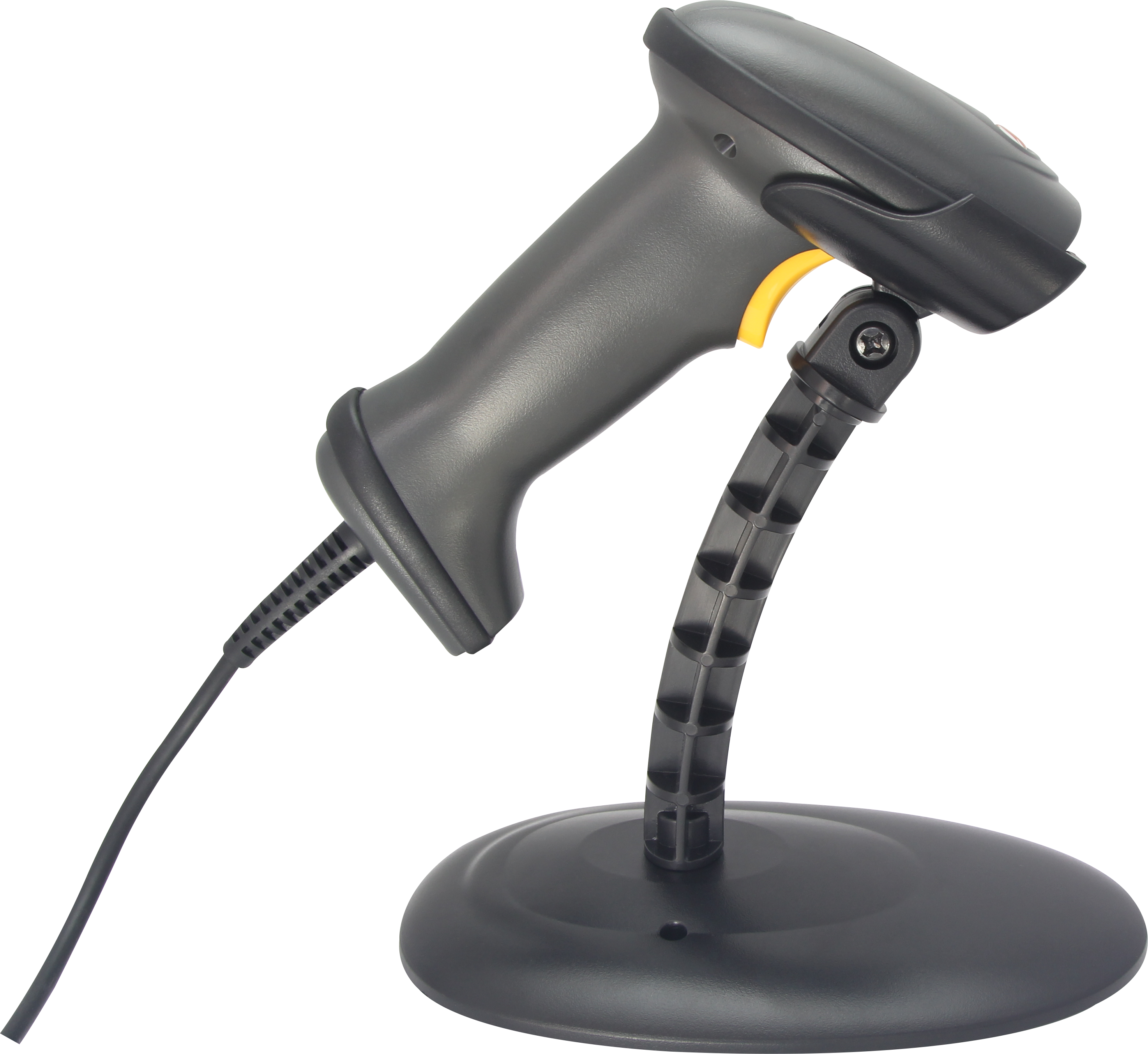

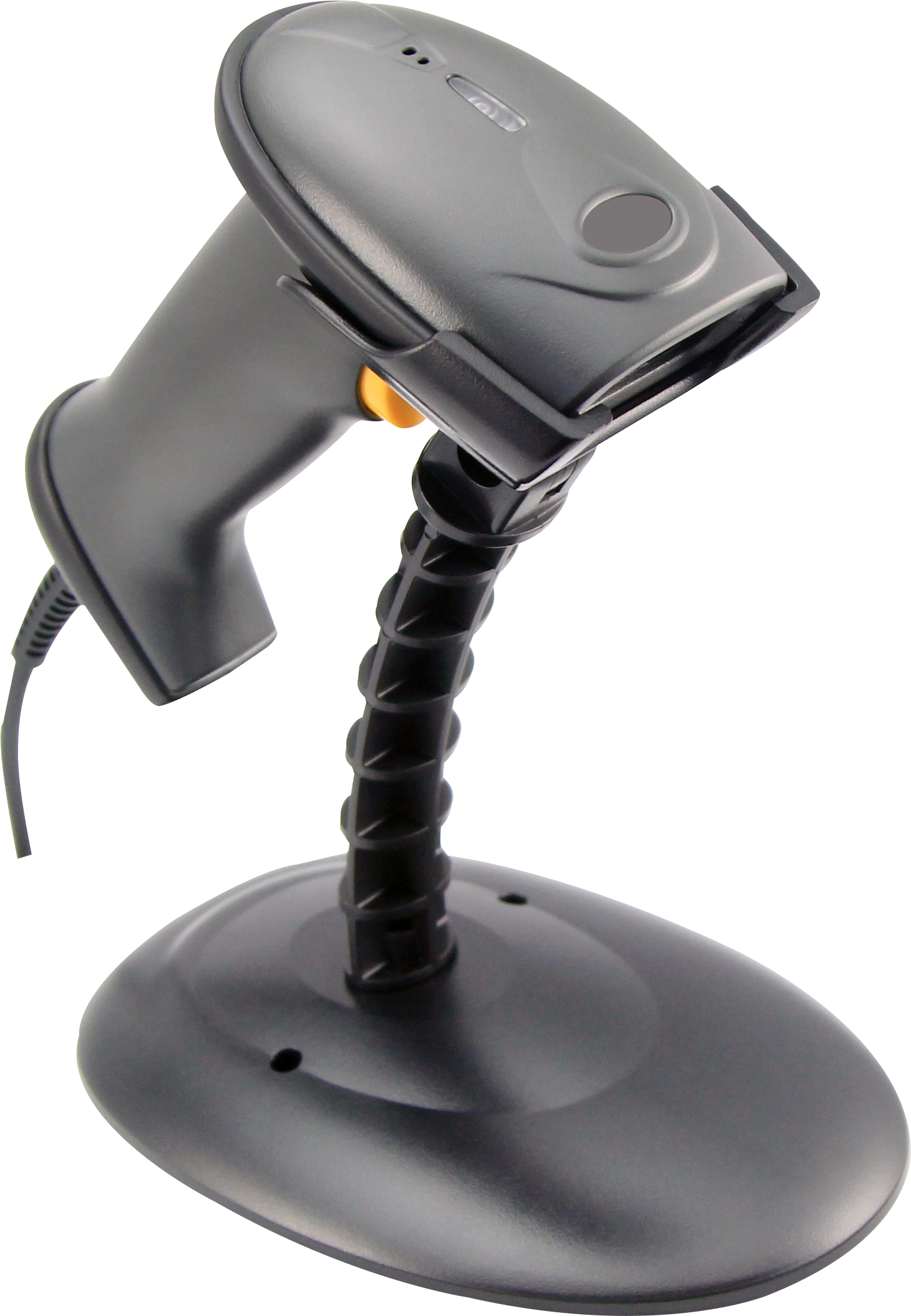

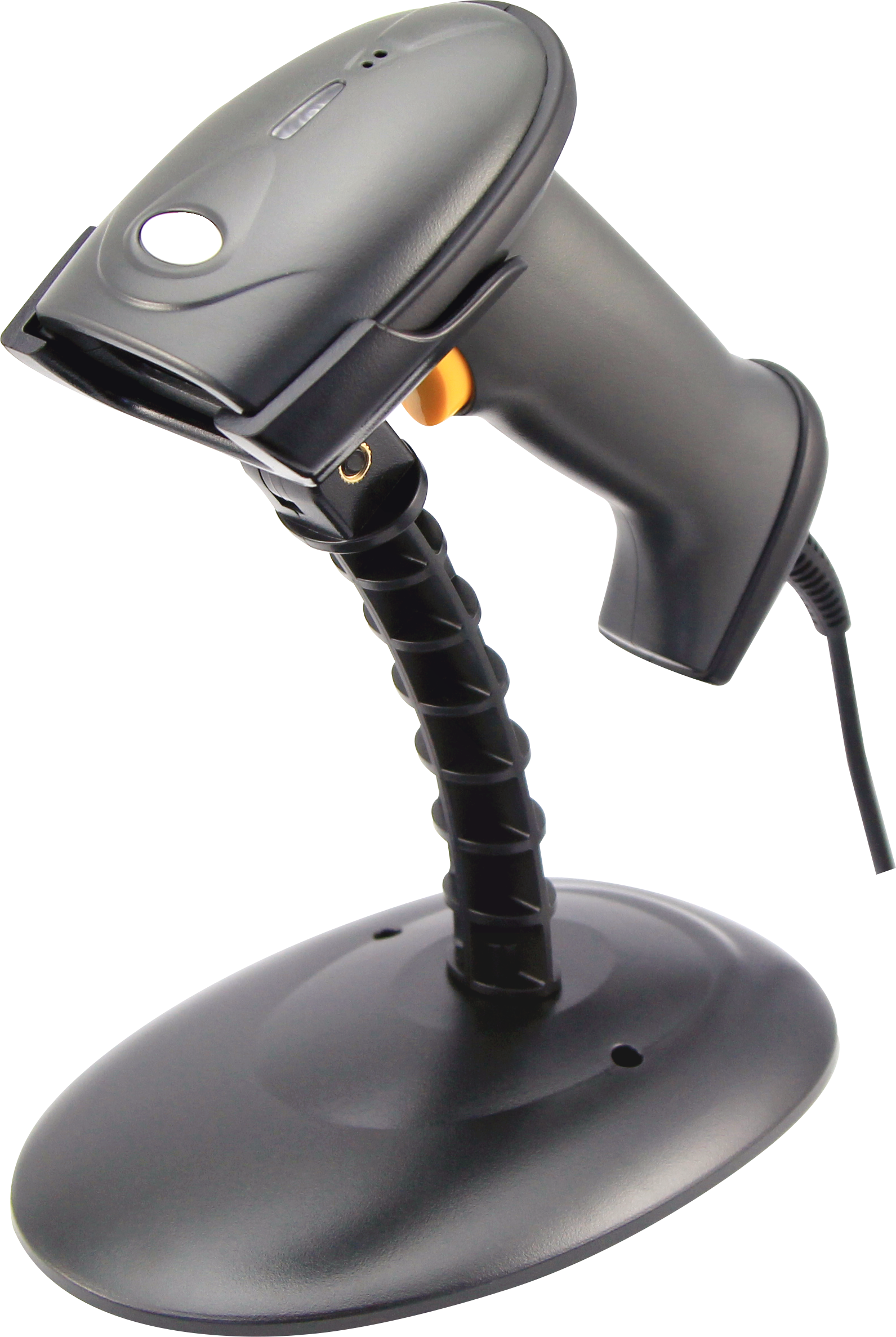

NEXT-3220
Desktop 1D/2D Barcode Scanner with 2m Cable
Rugged desktop scanner with red/white LEDs, USB/RS232 support, and wide 1D/2D decoding.
Highlighted Specs
- CMOS image sensor, 640×480 px, 30 fps scan speed
- Red LED (marking) + White LED (lighting)
- Interfaces: USB, RS232, USB-VCP
- Manual and continuous scan modes
- Decoding depth: 40–220 mm (EAN13, 0.33 mm pcs 0.9)
- Minimum resolution: 4 mil
- Drop test: 1.5 m; IP-rated rugged ABS+PC housing
- Supports 1D & 2D: UPC, EAN, Code39/128, QR, PDF417, DataMatrix, etc.
Full Specifications
Model: XL-3220
Cable Standard: 2 m
Light Source: Red LED (Marking Light), White LED (Lighting)
Input Voltage: DC 5 V
Image Sensor: CMOS
Working Current: 230 mA
Scan Mode: Manual & Continuous
Stand-by Current: 150 mA
Image Size: 640 × 480 pixels
Indicator: LED Indicator and Buzzer
Scan Speed: 30 fps/s
Drop Test: 1.5 m
Decoding Depth: 40–220 mm (0.33 mm pcs 0.9, EAN13)
Interface: USB, RS232, USB-VCP
Minimum Resolution: 4 mil
Operating Temperature: -10°C to 55°C
Print Contrast Signal: 15%
Storage Temperature: -20°C to 60°C
Size (L × W × H): 175 mm × 73 mm × 102 mm
Humidity: 5% to 95% (non-condensing)
Case Material: ABS + PC
Light Levels: 0–100,000 Lux
Scan Angle: Rotation: 360°; Tilt: ±50°; Deflection: ±50°; Field of view: horizontal 36°, vertical 23°.
Decoding Capability:
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code39, Codabar, Code128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, UCC/EAN 128, Code 11, MSI, UK/Plessey, ISBN/ISSN, GS1 DataBar Expanded, GS1 DataBar, GS1 DataBar Limited.
2D: QR code, PDF417, DataMatrix.
