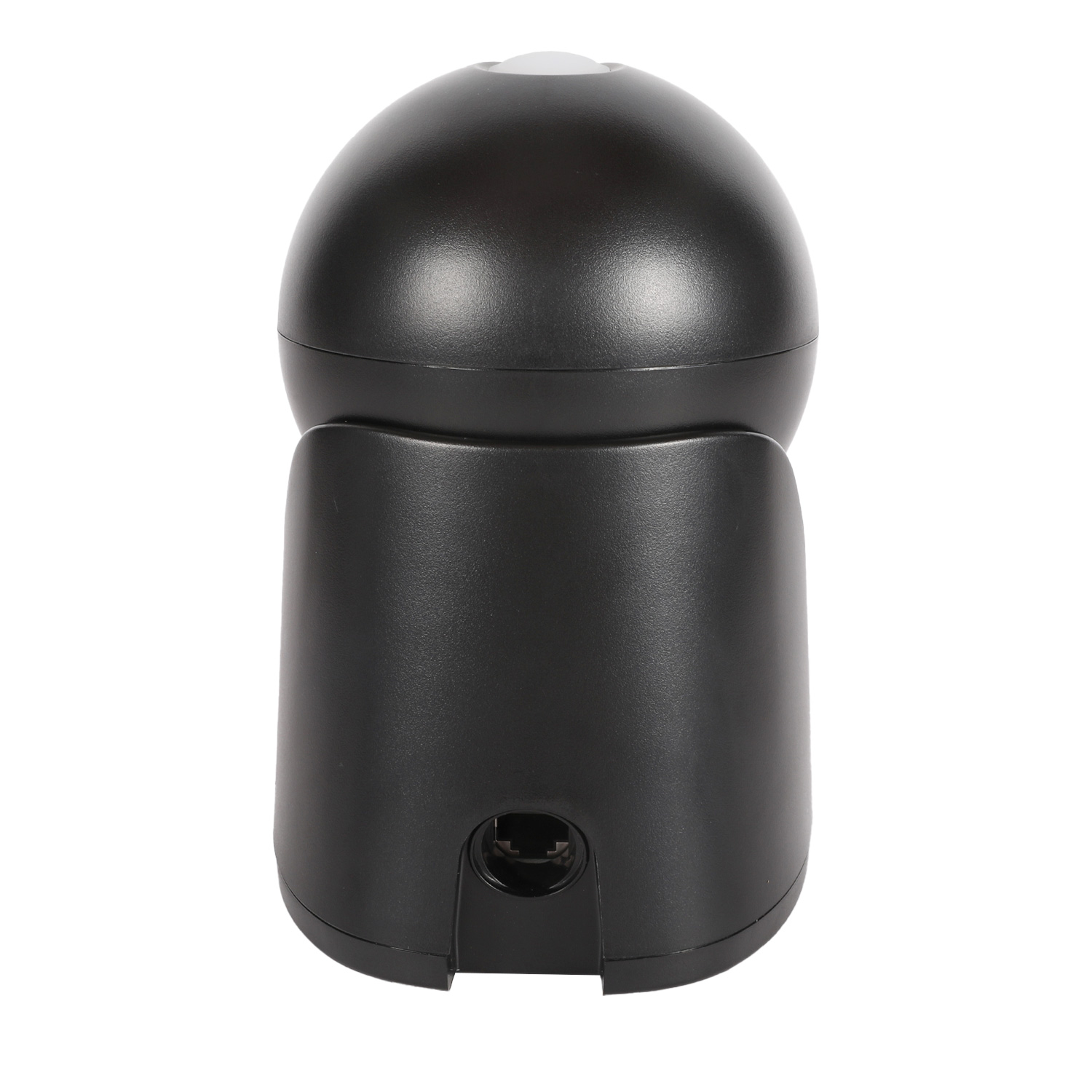

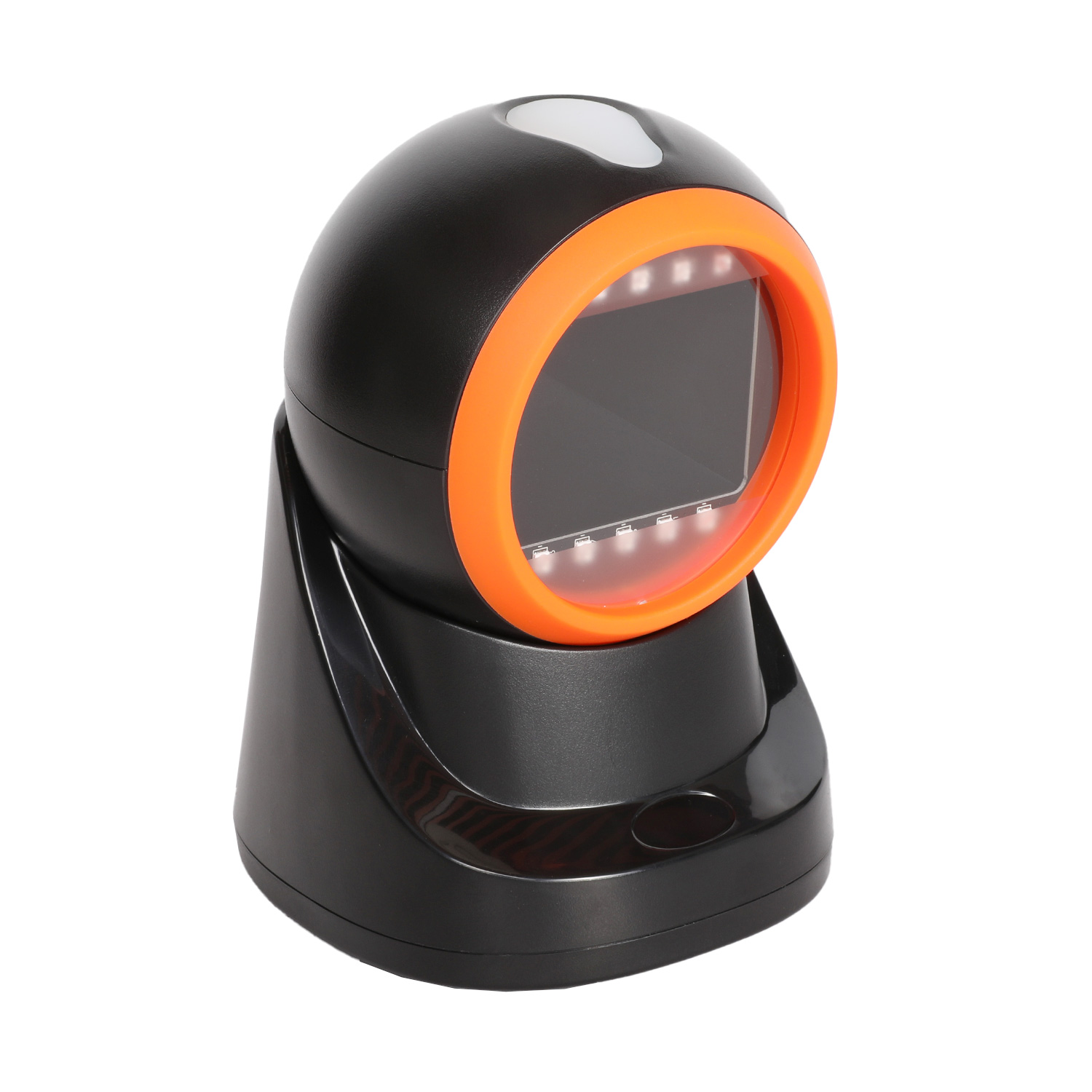

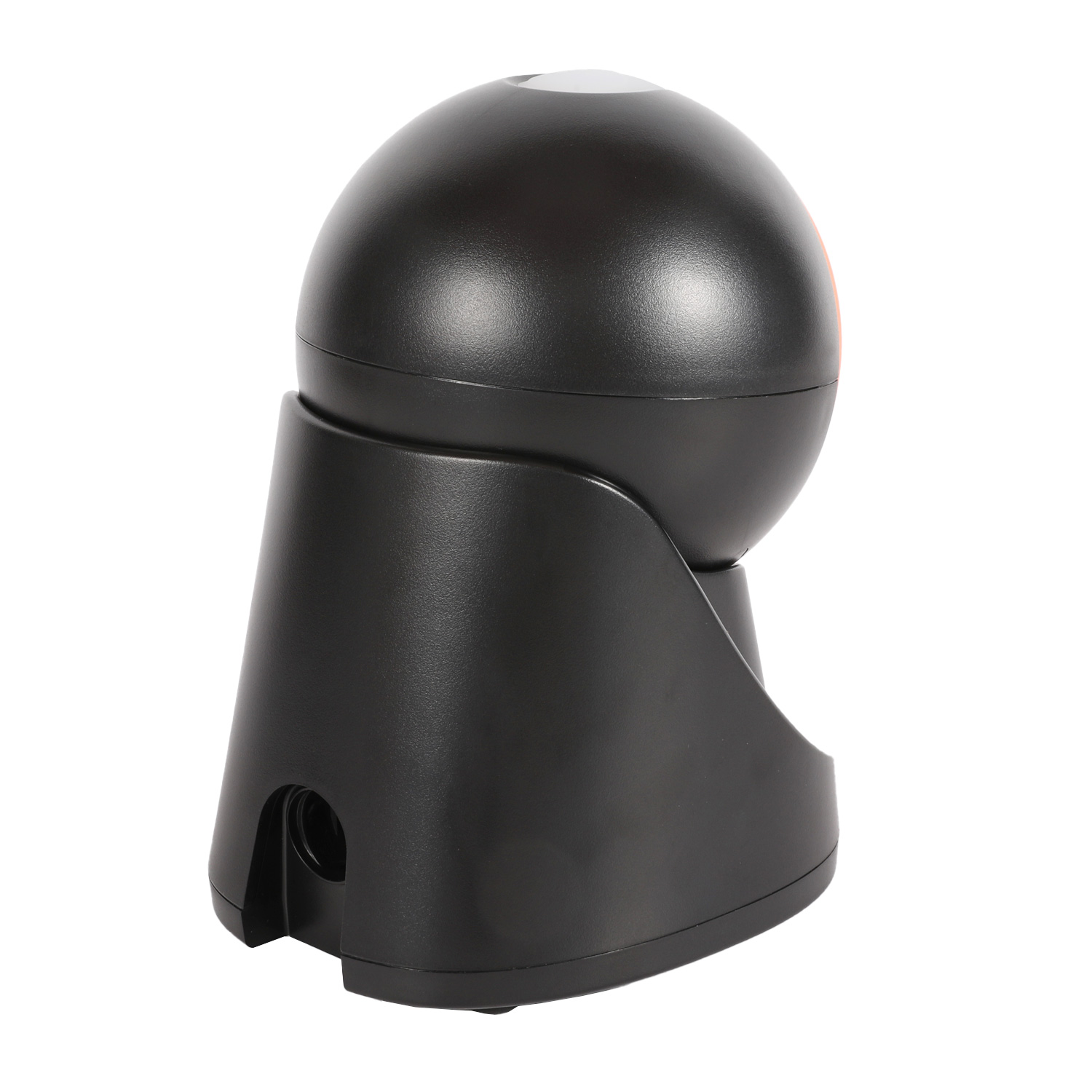

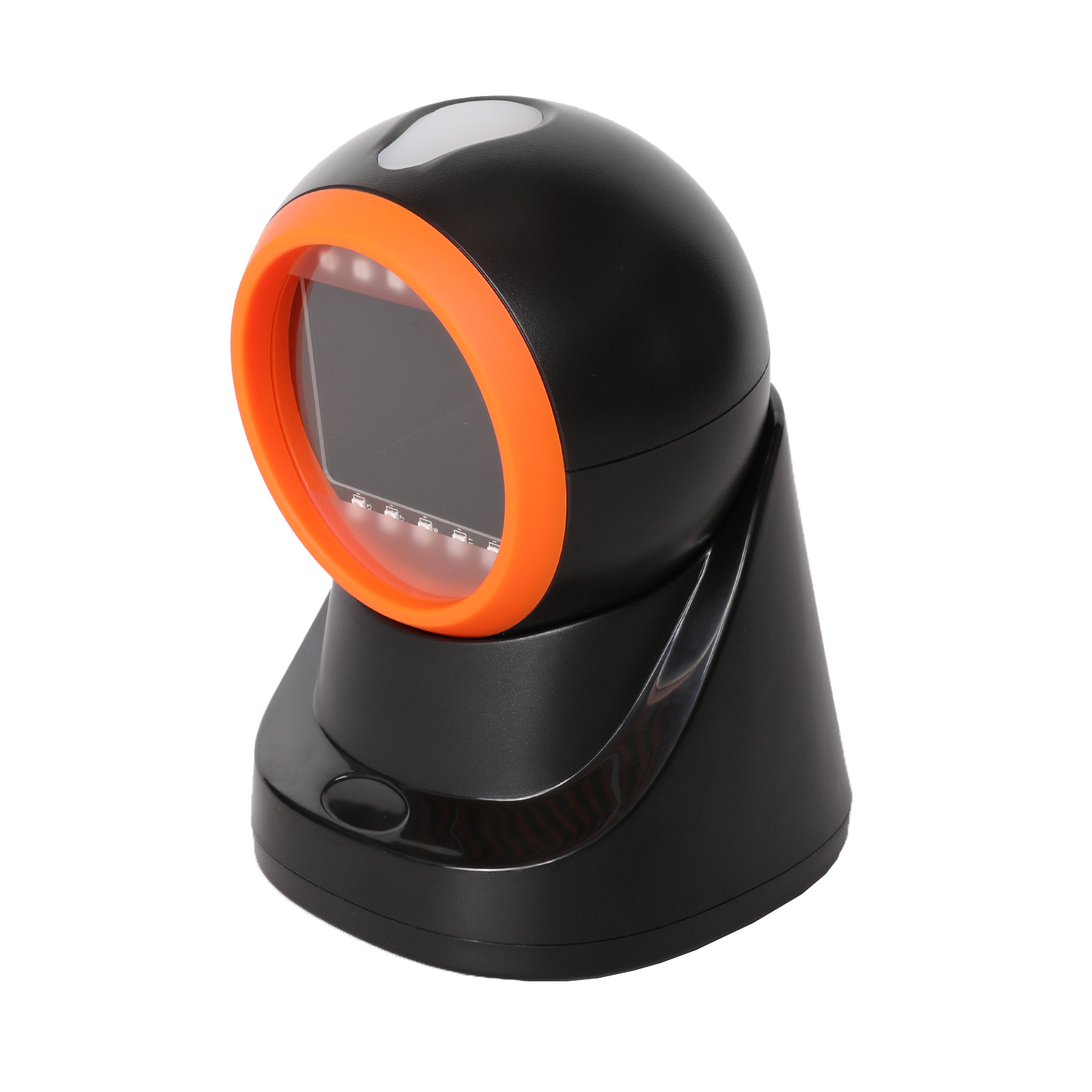

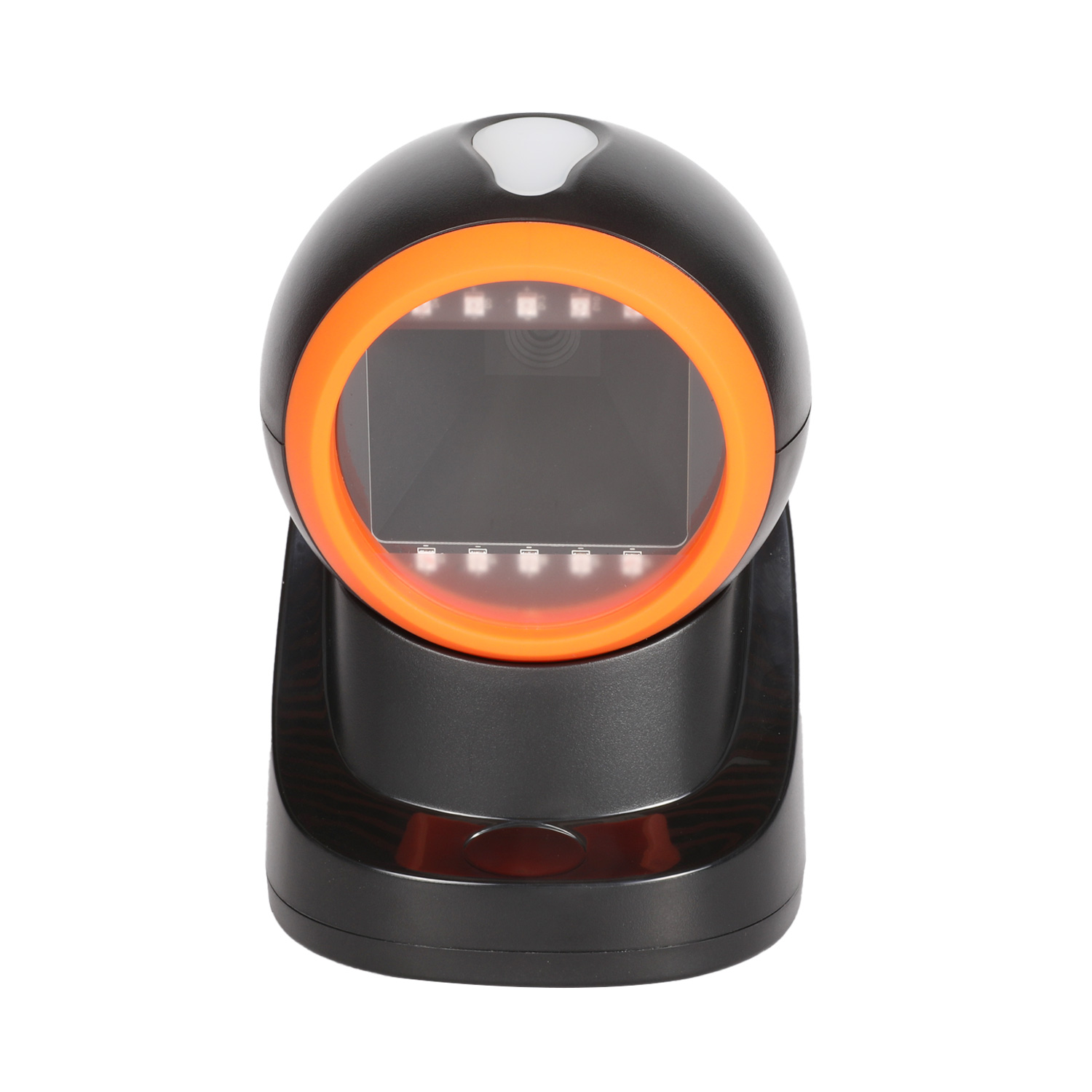

NEXT-2302
Desktop 1D/2D Barcode Scanner
High-speed desktop scanner with omni-directional adjustable head, supports common 1D/2D codes, multi-interface connectivity and robust drop resistance.
Highlighted Specs
- 32-bit MIPS CPU @ 1GHz
- Continuous & automatic induction scanning
- Image size 1280×800, scanning speed 60 fps
- Interfaces: USB-HID, USB-VCP, RS-232 (plug & play)
- Decodes 1D & 2D (UPC, EAN, Code 39, QR, PDF417, Data Matrix, etc.)
- Drop durability 1.5 m; weight 348 g (without cable)
Full Specifications
Model: NEXT-2302
Cable: Straight 2.0 m
Light Source: Red LED (lighting), 5600K
Connector Type: RJ-45 phone jack connector
CPU: 32-bit MIPS @ 1 GHz
Program Upgrade: Online
Scan Mode: Continuous scanning & automatic induction
Input Voltage: DC 5 V
Image Size: 1280 × 800 pixels
Working Current: 130 mA
Scanning Speed: 60 fps
Stand-by Current: 100 mA
Decoding Depth: 0–200 mm @ 13 mil UPC/EAN (PCS = 90%)
Drop Durability: Designed to withstand 1.5 m drop
Minimum Resolution: 4 mil
Interface: USB-HID, RS-232, USB-VCP
Indicator: Buzzer, LED (Blue / Red)
Operating Temperature: 0°C – 50°C
Storage Temperature: -40°C – 70°C
Size (L × W × H): 150 × 100 × 110 mm
Weight: 348 g (without cable)
Humidity: 5% – 95% (non-condensing)
Case Material: ABS + PC
Light Levels: Daylight: 0–100,000 Lux; Fluorescence: 0–5,000 Lux
Decoding Capability:
1D: UPC, EAN, Code 39 (full ASCII), Codabar, Code 128, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI Plessey, GS1 DataBar, etc.
2D: PDF417, Data Matrix, QR Code.
Compatibility: Linux, Android, Windows (XP/7/8/10), macOS
Notes: Plug and play (no driver required). Supports POS systems and cash registers. Adjustable omni-directional scanning head for larger angles and varied use cases.
